| TEMPORARY CODE | ||
|
A Temporary Code will be expired after a number
of times used as program (1-10 times). |
||

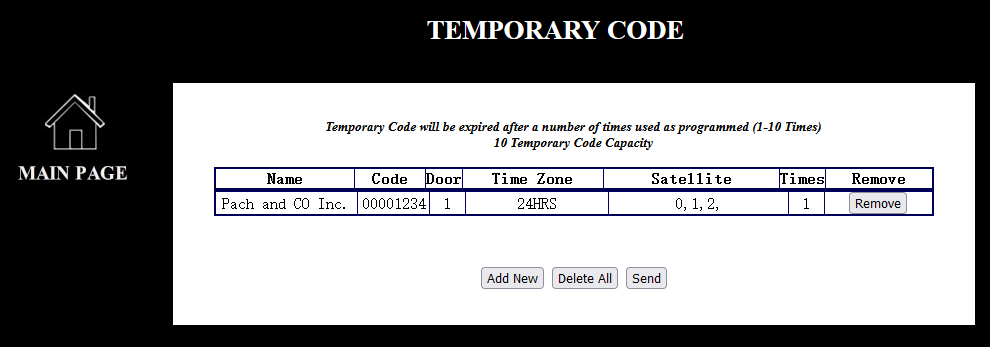

 Figure 1 |
||
 |
||
 |
||
| Adding a temporary code, see Figure 2 | ||
 Figure 2 |
||
|
|
||
|
[Name] up to 16
characters for example, Pach and CO Inc. |
||
| [Code] 4, 5, 6, 7 or 8 digit, depending on the setting under length of access codes on General Setting (for example 4 digit access code 1234). 4-digit access code is a default setting. | ||
| [Door] 1= Door 1 (Relay 1), 2= Door 2 (Relay 2), 3= Both Door 1 and Door 2 | ||
| [Time Zone] three different time zones can be assigned to each temporary code. See Time Zone setting. 24HRS means the temporary code will work 24/7. | ||
| [Satellite] up to 8 satellites can be connected to each of the Telephone Entry System. At least one satellite must be checked, even though no satellite is connected to the Telephone Entry System. | ||
|
[Times] Select 1-10
times, the number of times the access code can be used. |
||
|
|
||
 Adding a temporary code , see Figure 2 |
||
 Cancelling a new temporary code |
||
 |
||
| Deleting all temporary codes | ||
 Sending the temporary codes to the telephone entry system |
||
 Removing a temporary code |
||
|
|
||
