| TEMPORARY CARD | ||
|
A Temporary Card will be expired after a number
of times used as program (1-10 times). |
||

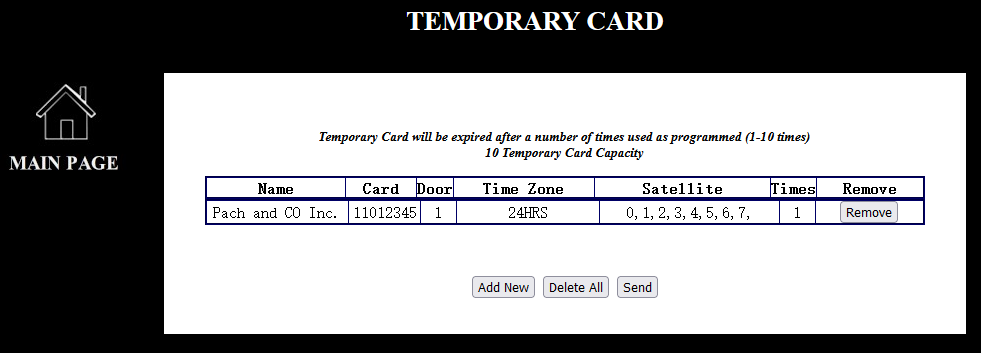

Figure 1 |
||
 |
||
 |
||
| Adding a temporary card, see Figure 2 | ||
 Figure 2 |
||
|
|
||
|
[Name] up to 16
characters for example, Pach and CO Inc. |
||
| [Card] 8 digit number, for example 11512345 | ||
| [Door] 1= Door 1 (Relay 1), 2= Door 2 (Relay 2), 3= Both Door 1 and Door 2 | ||
| [Time Zone] three different time zones can be assigned to each temporary code. See Time Zone setting. 24HRS means the temporary code will work 24/7. | ||
| [Satellite] up to 8 satellites can be connected to each of the Telephone Entry System. At least one satellite must be checked, even though no satellite is connected to the Telephone Entry System. | ||
|
[Times] Select 1-10
times, the number of times the access code can be used. |
||
|
|
||
 Adding a temporary card , see Figure 2 |
||
 Cancelling a new temporary card |
||
 Deleting all temporary cards |
||
 Sending the temporary cards to telephone entry system |
||
 Removing a temporary card |
||
|
|
||
