ACCESS CODE
	An Access Code is used to unlock the door

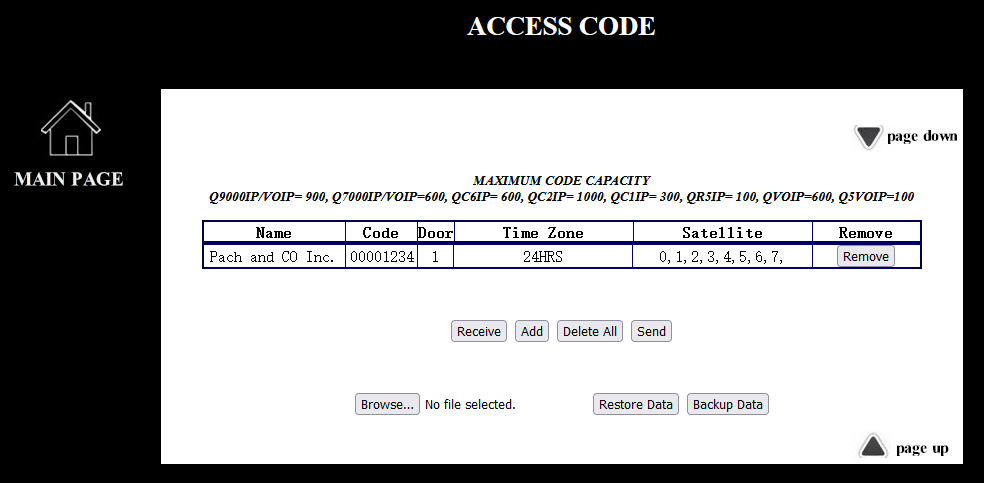

	Figure 1
	Receiving the access codes from Telephone Entry System, only if the access codes are lost.
	Adding an access code, see Figure 2

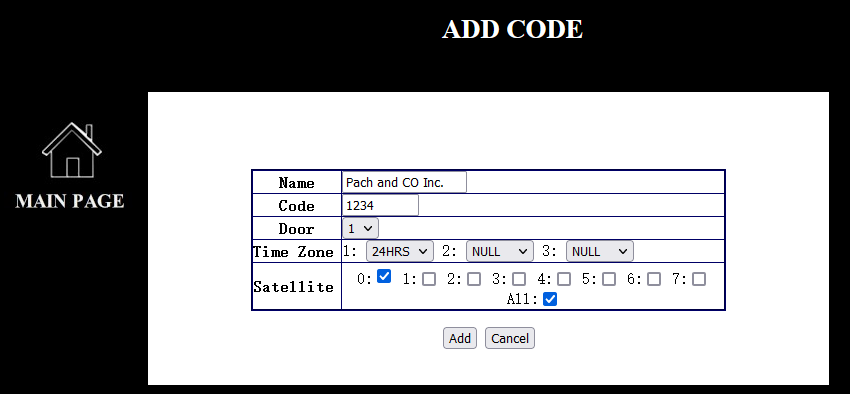

	Figure 2
	[Name] up to 16 characters for example, Pach and CO Inc.
	[Code] 4, 5, 6, 7 or 8 digit, depending on the setting  under length of access codes on General Setting (for example 4 digit access code 1234). 4-digit access code is a default setting.
	[Door] 1= Door 1 (Relay 1), 2= Door 2 (Relay 2), 3= Both Door 1 and Door 2
	[Time Zone] three different time zones can be assigned to each access code. See Time Zone setting. 24HRS means the access code will work 24/7.
	[Satellite] up to 8 satellites can be connected to each of the Telephone Entry System. At least one satellite must be checked, even though no satellite is connected to the Telephone Entry System.
	Adding an access code , see Figure 1
	Cancelling a new access code
	Removing an access code
	Deleting all access codes from the QWCM Web Based and Telephone Entry System. Back up the access codes before deleting all.
	Sending all access codes to Telephone Entry System
	Backing up the access codes. Save backup file into a  folder. Do not rename the database file name. The access codes file name must be Code_Config
	Restoring the access codes from a backup file. Click and select Code_Config and
	Sending the access codes database to Telephone Entry System
